Change Superior Drummer 3 Midi mapping to match Addictive Drummer

[Tom Levin]

I had SD3 a couple of months ago which I bought second-handed, but sold it pretty quickly after realizing how inconvenient it’s midi mapping was. Before that, I worked with Addictive Drummer, which in my opinion has a WAY BETTER midi mapping (Why the actual F*ck is the Hihat located between the toms and 3 octaves above has better controls?!) and I sold my SD3 mainly due to the fact I had to change many of my Addictive Drums mapping to the SD3, which was hell.

Now I rethink purchasing again, but not without making sure first that it’s possible to rearrange the midi map to match the one of Addictive. Anyone knows if possible, what’s the procedure, and if this change is saved for all drums presets? I remember some presets have different keys, which makes it even worse…

Uploaded a photo to better explain the frustration

Topic

[John]

Hi Tom,

I hope we can help you get things to work smoother for you.

First, “better” is IMO subjective here. Regarding Hi Hats, you have 12 different articulations mapped for the HH in AD2. In SD3, you have 24, i.e. double the amount. Those articulations have to go somewhere on the keyboard layout and the goal is to both be drums GM compliant plus grooves and library compatible across the Toontrack line.

If you find that the AD2 Keyboard layout suits you better, you can go into the Settings > MIDI In/E-drums and select the AD2 MIDI Preset (as in my screen shot).

This will make it possible to have the layout applied when you play but still use Toontrack MIDI in the Grooves Browser. Does this help?

BR,
John

John Rammelt - Toontrack
Technical Advisor

[louloulou]

Hi

Why there not a Get Good Drums mapping ?

1

Thanked by: infinitelazerdog

[willpadgett]

John, you had the perfect solution for OP ready to go and never heard any thanks. So thank you.

1

Thanked by: John

[Michael Ayala]

I’ve been trying to use the grid editor but some notes like edge, off center, rim only, flam and closed roll are not midi map how do I activate it so that I can use those notes on the grid editor?

[John]

Michael Ayala wrote:

I’ve been trying to use the grid editor but some notes like edge, off center, rim only, flam and closed roll are not midi map how do I activate it so that I can use those notes on the grid editor?

Hi Michael,

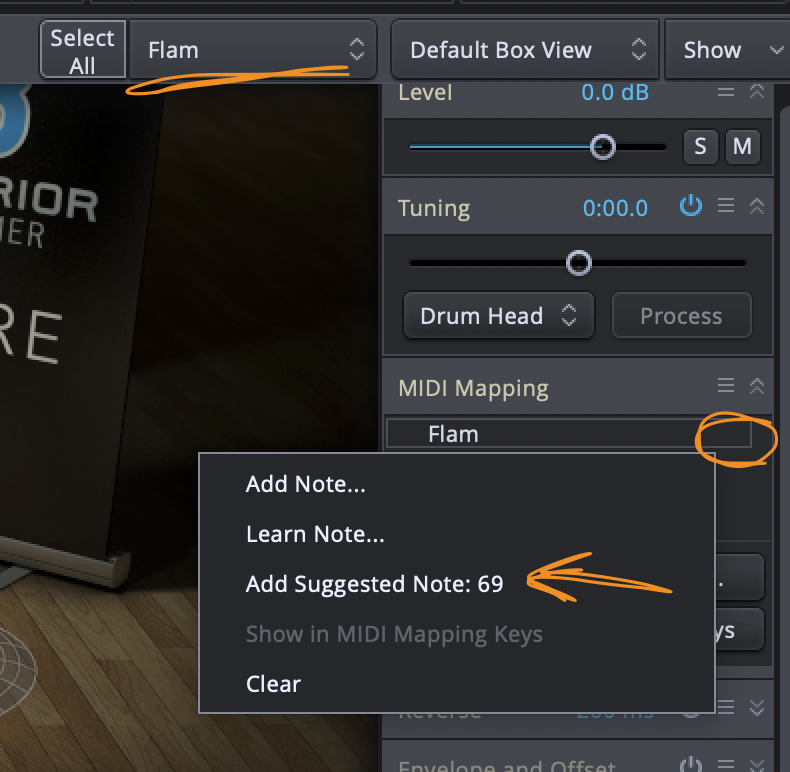

which preset are you starting from? It seems a bit strange that all of those are not mapped. If you have started by loading articulations not included in the preset you’re starting from, it’s not strange that they are unmapped. I would simply open the MIDI Mapping Property Box on the DRUMS page and with the articulation in question selected, click on the small “hamburger” menu to the right of the articulation name and ‘Add suggested note’.

BR,
John

John Rammelt - Toontrack
Technical Advisor

[Prince007]

Hello John,

I just want to say thank you very much for posting this!

I bought Superior drummer 3 years ago and I stopped using it because I got used to using the Addictive drums 2 Mapping.

I had no idea that you can select the AD2 mapping preset for Superior Drummer 3. This is a smart function that you guys added.

Now I can start using Superior Drummer 3 again.

Thank you Very Much!

1

Thanked by: John
